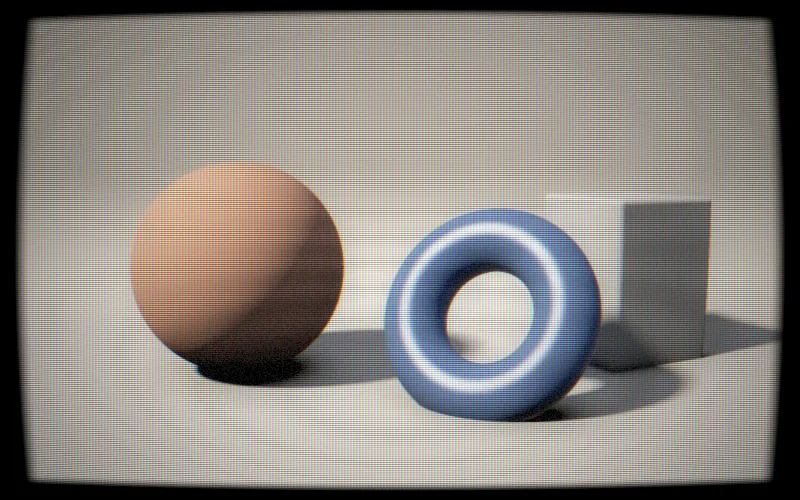

CRT shader preview: Plays any image, or the layers beneath, on a curved tube monitor or a worn videotape.
ittybitty

CRT

Plays any image, or the layers beneath, on a curved tube monitor or a worn videotape.

Code

The usage always matches the preview, layers and performance settings included. No build step or package.

Copy embed gives one block to paste into any page or site builder, no setup. For your own code: add crt.js, ittybitty-shader.js, runtime.js, texture.js next to this page. Highlighted values follow the controls.

<!-- Quickest: one element. Size it with CSS; it fills its box. -->
<script type="module" src="./ittybitty-shader.js"></script>
<ittybitty-shader effect="crt" style="width: 100%; aspect-ratio: 16 / 10;"></ittybitty-shader>

<!-- Or with JavaScript, for full control: -->
<canvas id="crt" aria-hidden="true" style="width: 100%; aspect-ratio: 16 / 10; display: block"></canvas>

<script type="module">
  import { crt } from './crt.js';

  const canvas = document.getElementById('crt');
  const effect = crt(canvas, {
    showFrame: true,
    showScanlines: true,
    showMask: true,
    showBloom: true,
    showNoise: true,
    image: '/examples/still-life.webp',
    style: 'crt',
    speed: 1,
    curvature: 0.5,
    scanlines: 0.6,
    mask: 0.45,
    bleed: 0.35,
    noise: 0.3,
    bloom: 0.5,
    lines: 240,
    // Performance
    dpr: 2,
    adaptive: true,
  });

  // Later: effect.set(…), effect.pause(), effect.resume(), effect.destroy()
</script>

Details

CRT gives a curved tube with glowing phosphor stripes, scanlines that thin in the dark and swell in the light, and a soft bloom. VHS gives colour bleeding sideways, tracking bands rolling up the picture, jittering lines and tape noise.

Payload
5.8 KB brotli for crt.js and ittybitty-shader.js and runtime.js and texture.js, measured at build time. See the method.
Resolution
Device pixel ratio capped at 2.
Frame rate
Display rate.
When unseen
Stops rendering when the canvas leaves the viewport or the tab is hidden, and resumes where it left off.
Reduced motion
Shows a single still frame. Controls still update it.
Layers
Up to five effects fuse into one shader and one draw call. Filters such as dithering and halftone process the layers beneath them.
Browsers
Any browser with WebGL2: Chrome and Edge 56+, Firefox 51+, Safari 15+.
Licence
MIT. Copy it, change it, ship it.
